Products : PGPG2 : Pipeline-Designing Utility
PGPG2 (Pipeline Generator for Programmable GRAPE, generation 21) is a pipeline-designing utility, with which

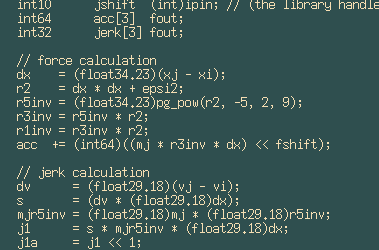

users can describe arithmetic computations using a high-level language
similar to C. The utility converts the description into a pipeline
logic for GRAPE-7 and a user library to handle it.
- Converts a pipeline design described in a high-level language
into a hardware logic described in VHDL. Typically, a 10 to 100 lines
of description in the high-level language is converted into a 1,000 to
10,000 lines of description in VHDL.
- A pipeline logic generated by the utility is combined with an
interface logic2 (a logic to control
data transfer between GRAPE-7 and the host), so that it can be
synthesized using Altera's QuartusII
Web Edition3 (charge free).
FPGA devices on a GRAPE-7 are configured with the synthesized logic.

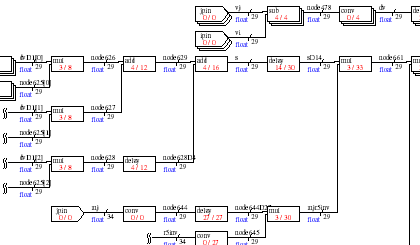

- A schematic of the logic, a bit-level emulator, a logic for
simulation and its test vectors are also generated. With these tools
and data, a user can check correctness of the logic and can evaluate
accuracy of pipeline output.
- A user library and its header file to handle the pipeline from
the host computer are also generated.
Softwares, Data, and Documents
Related softwares, data, and documents are bundled in an all-in-one package,
- PGPG2 utility suite.
- An installation guide, a user guide, and other documents.
- An example of a pipeline description.
- A host/GRAPE-7 data transfer library (with source code).
- A device driver for Linux (with source code).
- To modify existing pipelines:
- A user can modify number format and bit width of an existing
pipeline, such as the pipeline for gravitational-force calculation
equivalent to GRAPE-5, so that it suits the user's own application.
In a case accuracy required for the application is lower than that
offered by the existing pipeline, the pipeline can be redesigned with
fewer hardware resources. Such a modification may cause increase of
the number of pipelines integrated into the FPGA devices.
- To design totally new pipelines:
- A user can design totally new pipelines for his/her own
purpose. Previous works in several fields of computational science are
showing that, in some case, hardwired pipeline can accelerate
calculation speed of molecular dynamics (MD), smoothed particle
hydrodynamics (SPH), and boundary integral equation method (BIEM).
- GRAPE-7: an FPGA-based acceleration
board for many-body simulations
- 1: PGPG2 is a utility designed and developed
by K & F Computing Research Co. based on PGPG (Hamada et al.,
2005). There exists another extension of PGPG, named PGR (Hamada
& Nakasato, 2005). The concept of "pipeline description by a
high-level language" is proposed by Dr. Nakasato (Aizu University) in
- 2: A proper interface logic is automatically
generated, according to the model of GRAPE-7 in target.
- 3: [For GRAPE-7 Model800/100 users]: In order
to generate a bit-stream data (the final product of a pipeline design
to be written to FPGA devices), PLDA's PCI-X IP
core is required. For GRAPE-7 users who do not have the core, we
offer a free-of-charge service to generate the bit-stream data. [For
GRAPE-7 Model600/300 users]: The core is not necessary for Model600
and Model300. A user can generate the bit-stream data in his/her own
- Contact: firstname.lastname@example.org
